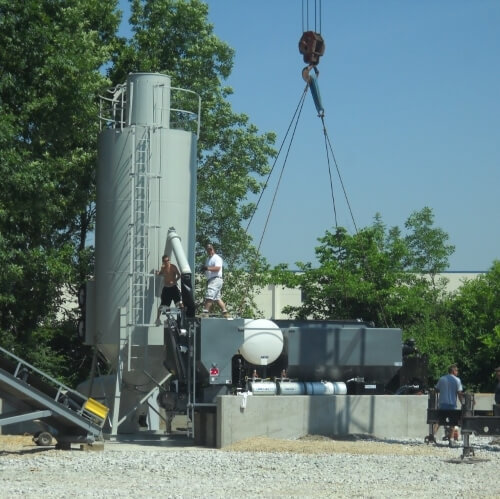

Used 9-yard Zim Mixer Volumetric Plant - 2013

9 cu. Yd. capacity producing 60 yph
354 cuft divided aggregate bin (50% sand/ 50% stone)
2 sand vibrators
Dual chain material feed system
Bin liner
96 cuft cement bin with power agitator
(3) vibrators and chain feed system (self-cleaning)
10” cement bin fill port
(2) cement bin indicators
500 gallon polyethylene water tank with ground level water fill, water pump, digital water flow meter, water solenoid valve
High flow admix system with metal filter and stainless steel tank
(2) low flow admix systems with metal filters
Ticket printer
HP zero slump auger
Power auger lift and swing
Pump Chute
Material feed flow control and tachometer
110Hp Cummins diesel engine package
Hydraulic cooler fan
Hydraulic silo hookup for 270bbl silo
4-section hydraulic pump
Dust reduction system

30” wide x 30’ long Yard Portable one piece low profile reinforced channel truss frame radial stacker
250+/- FPM belt speed
120 TPH capacity of 145 PCF 2” x 0 low slump concrete on an adjustable incline of 30 degrees max
10Hp gasoline engine, skid mounted on the axle of the radial stacker complete with electric and pull chord start and a 5 gallon fuel tank
Hydraulic system with oversized reservoir for cooling purposes, hydraulic pump coupled to above engine, manual flow control valve, suction strainer and return line filter
Low speed high torque Hydraulic gear motor coupled to head shaft with hydraulic hoses
12” dia. Head and tail pulley
6’ long low profile skirtboards
2-ply 220 PIW conveyor belting with 3/16” x 1/16” covers, Flexco splice
Structural steel tube support struts with pinned telescoping front strut for manual height adjustment from approximately 10 to 30 degrees
Axle assembly of structural steel tube construction with pick-up type truck tires on agricultural spindles which can be fixed in either the towing or the radial travel positions.

Manufacturer: Zimmerman Industries

Model: ZM-409-HP

Size:

Description:

No longer available
